Ⅰ．Production overview

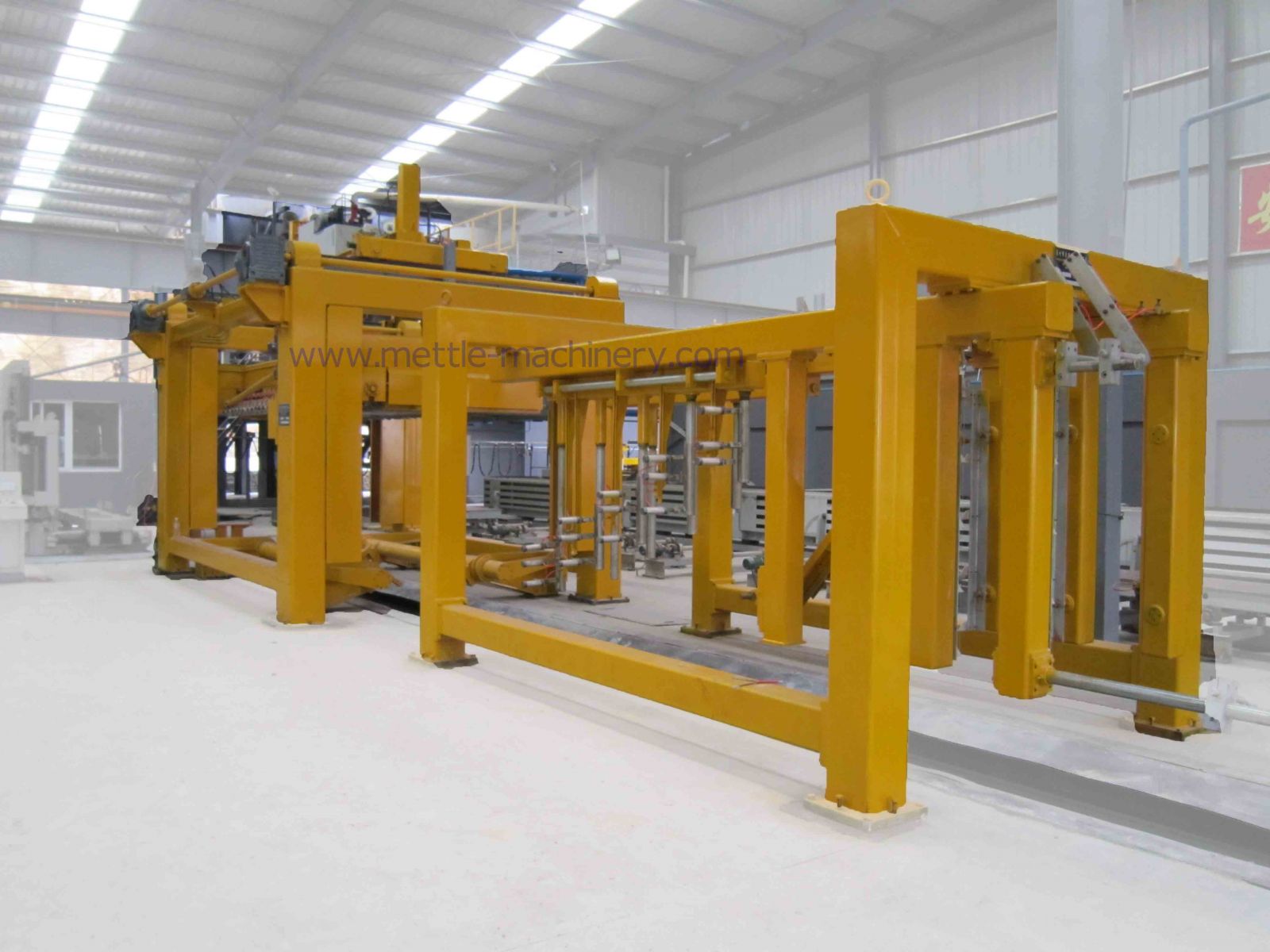

    Cutting machine is the key equipment used in the production process of autoclaved aerated concrete. The accuracy of the cutting machine is the main factor that affects the accuracy of the production. The cutting machine has the advantage of high accuracy, high speed, high automation and stable operation. The cutting machine consists of cross cutting machine, vertical cutting machine, cutting cart etc.

Ⅱ．Technical specification and Working principle of the equipment

2.1. Technical specification

Vertical overall dimension:

1）Maximum overall dimension    L: 6040mm     W: 2870mm   H: 2550mm

2）Weight:  3900 kg

Cross cutting

1）Maximum overall dimension  L: 5220mm     W: 3520mm H: 3740mm

2）Weight:  10000kg

3）Motor power

Hoisting motor : 4kw

Swinging motor: 3kw
